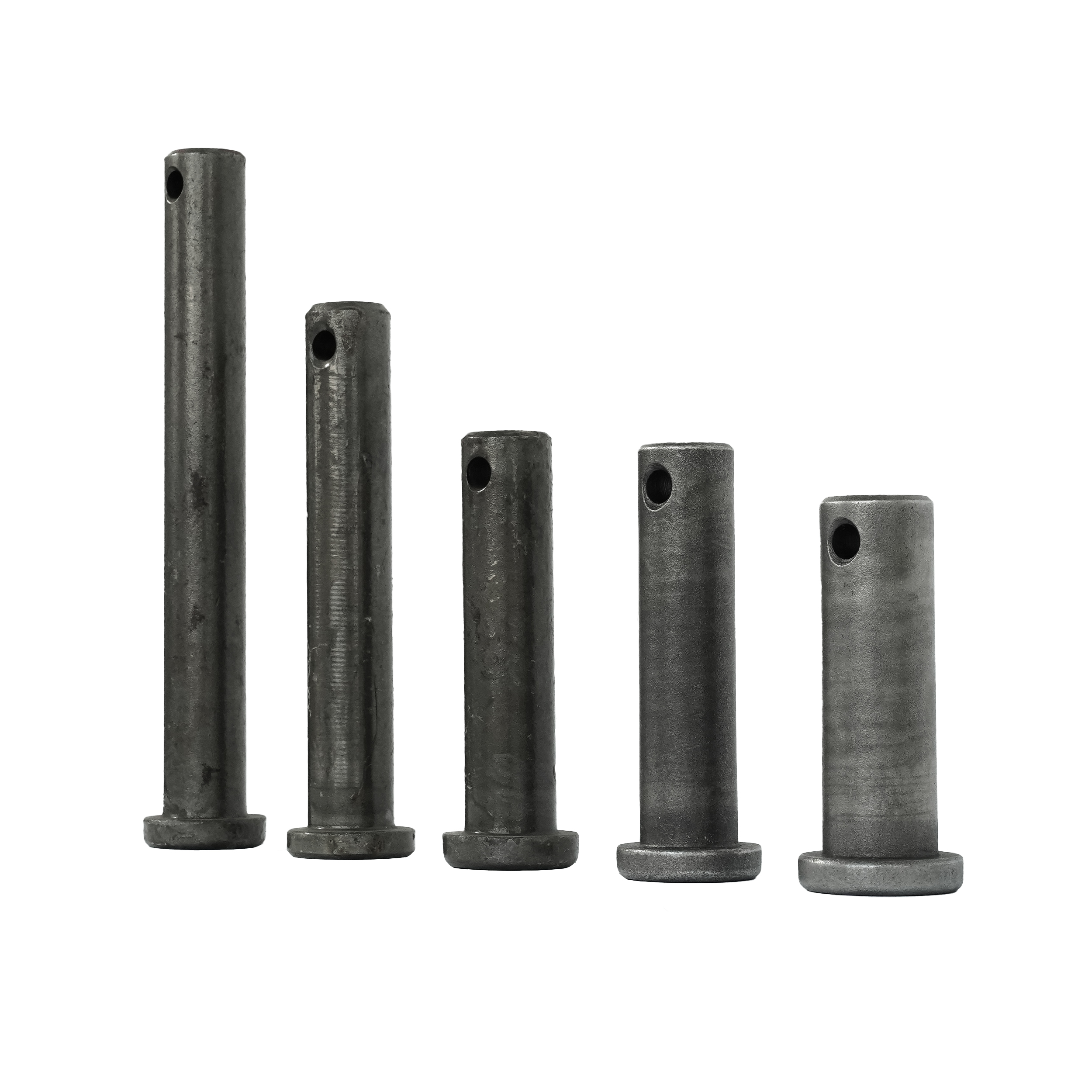

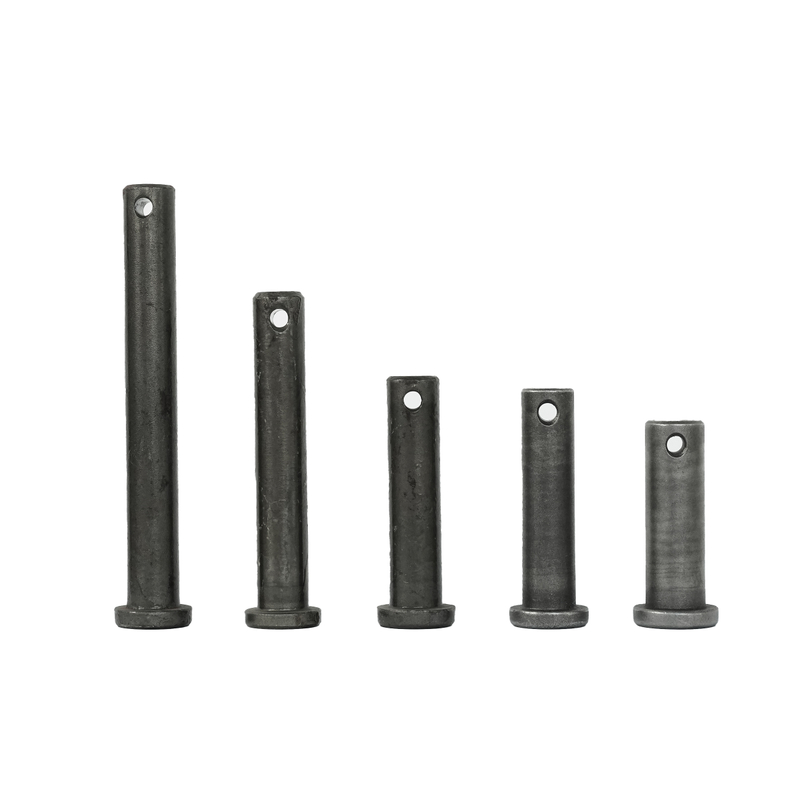

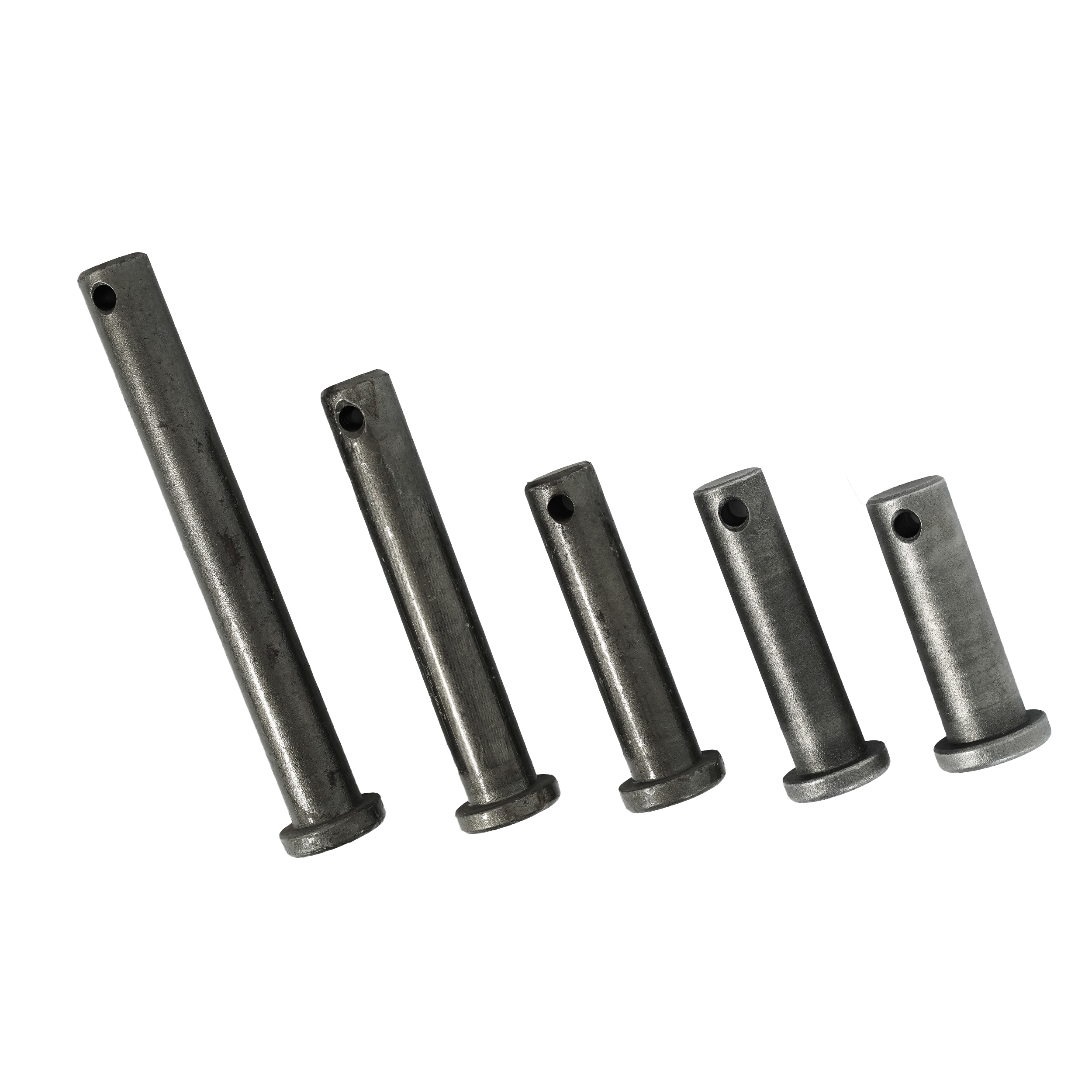

Standard Clevis Pin

▍Product Advantage

Durable Anti-Corrosion Surface

Adopts thick zinc-plated coating (thickness ≥65μm) for excellent rust and oxidation resistance. It withstands humid, outdoor and mild corrosive environments, extending service life to 5-8 years and lowering maintenance frequency.

Wide Universality & Cost-Effective

Compatible with most standard U-Clevis, shackles and linkage assemblies, suitable for machinery, trailers, agriculture and engineering fields. Stable performance and affordable price make it an ideal choice for mass industrial use.

Quick Installation & Secure Locking

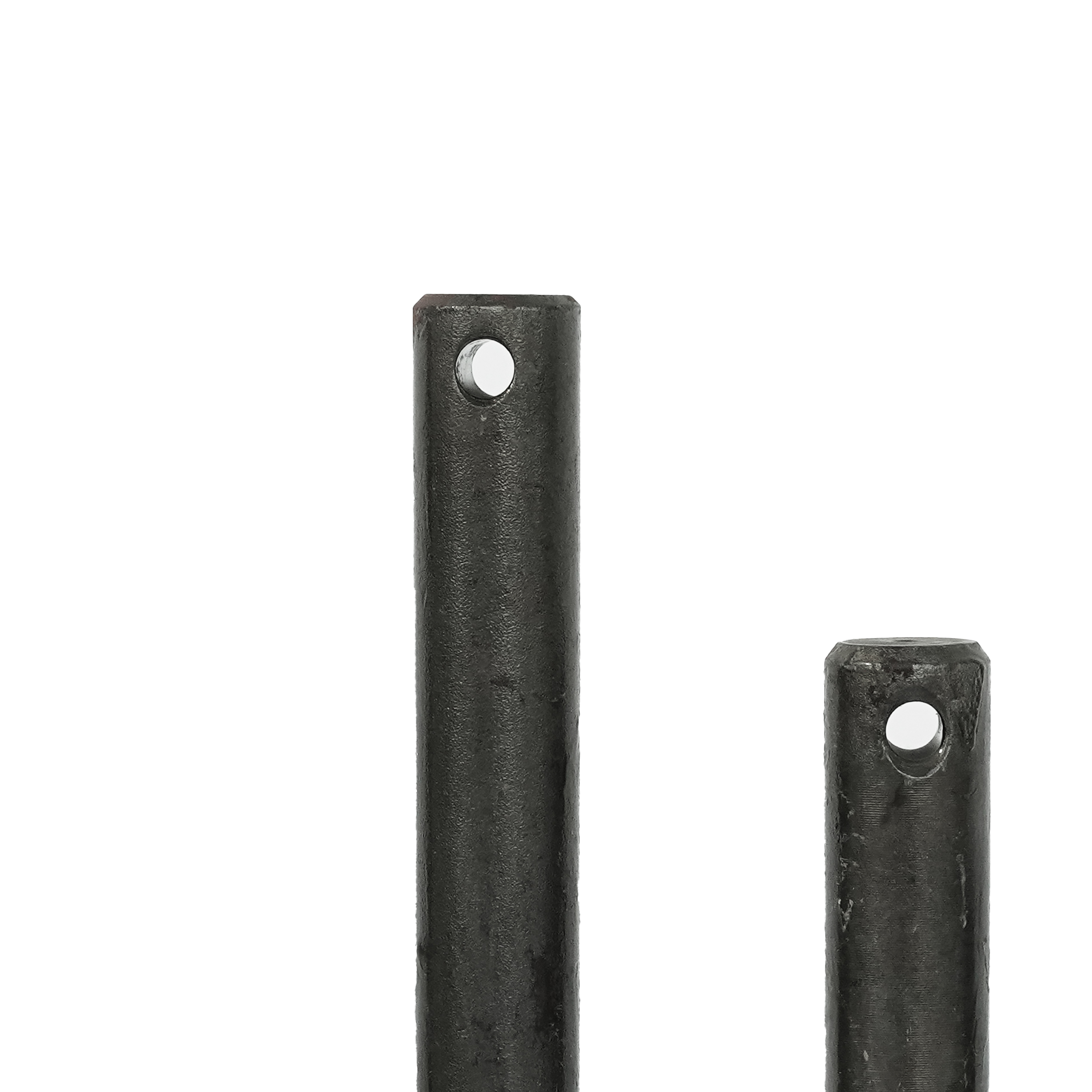

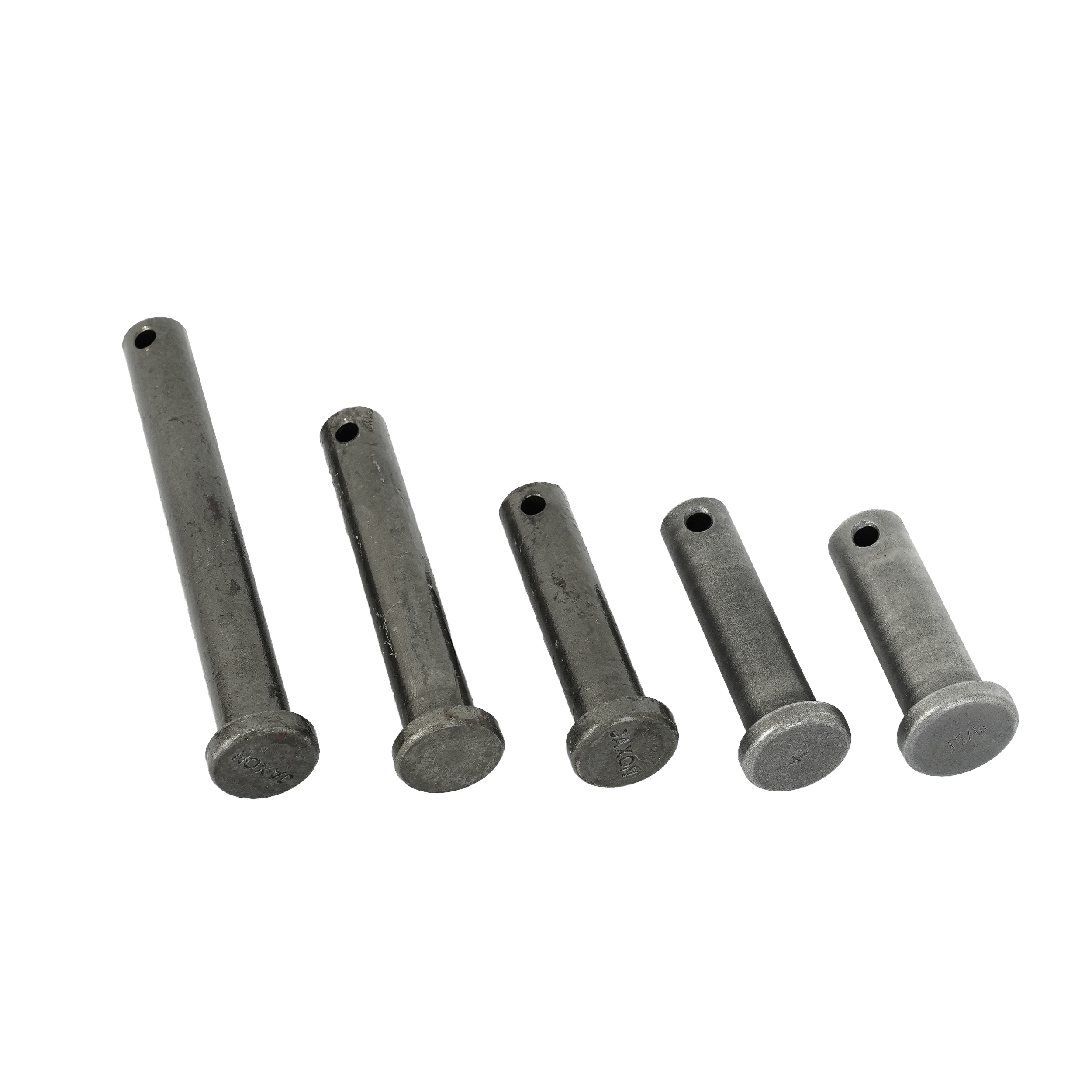

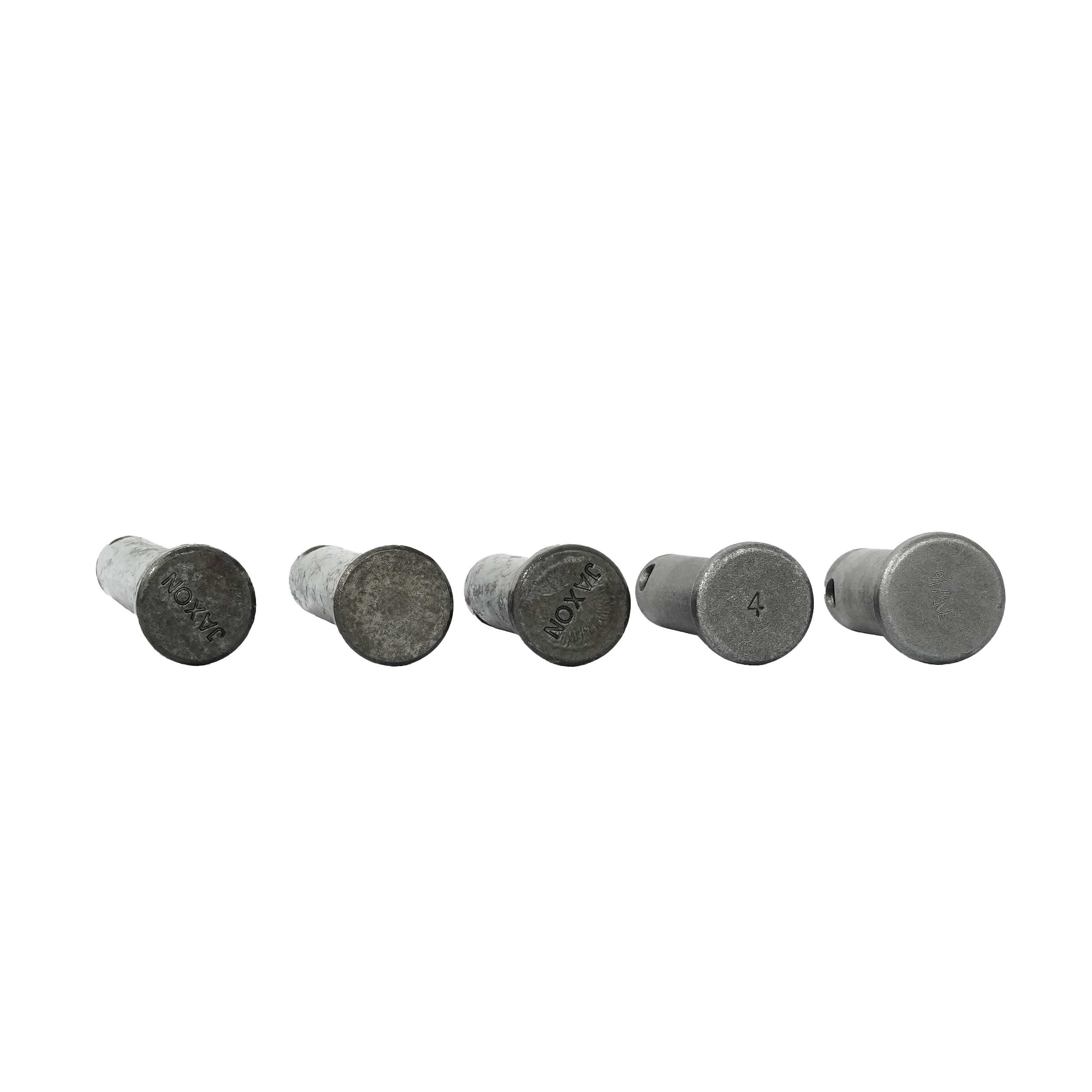

Features a flat round head for easy positioning and a standard cotter pin hole for stable locking. The simplified structure allows tool-assisted quick assembly and disassembly, saving 40% of construction time and improving work efficiency.

Standardized Precision Machining

Manufactured strictly in accordance with DIN 1444 and ISO 2341 standards, with diameter tolerance controlled within ±0.02mm. The smooth polished shank reduces friction, enabling perfect fitting with U-Clevis holes and no jamming during assembly.

▍Technical Parameters

▍Product Uses

Industrial Machinery & Equipment:

Widely used for connecting linkage rods, hydraulic cylinders and transmission parts of various machinery. It bears shear and tension stably, ensuring smooth operation of equipment under frequent vibration and heavy loads.

Railway & Transportation Facilities:

Applied to railway wagon braking systems, trailer hitches and vehicle coupling components. The standard size fits U-Clevis perfectly, meeting strict safety standards for transportation equipment.

Agricultural Machinery Assembly:

Suitable for farm tractors, harvesters and irrigation equipment connection. It withstands outdoor field environments, enabling quick disassembly for maintenance and reducing downtime.

Engineering Lifting & Shackle Systems:

Matches with lifting shackles and U-Clevis for hoisting equipment and engineering brackets. Its high-strength performance guarantees safe and reliable lifting and fixing operations.

Power & Marine Hardware:

Used for power fitting connection and marine deck small-scale fastening. The zinc-plated anti-corrosion surface adapts to humid coastal and outdoor power scenarios.

▍Product Operate Guide

Align the standard clevis pin with U-Clevis holes, insert the pin smoothly, and lock with a matching cotter pin to prevent slipping. Avoid overloading or using deformed pins; inspect regularly for wear.
