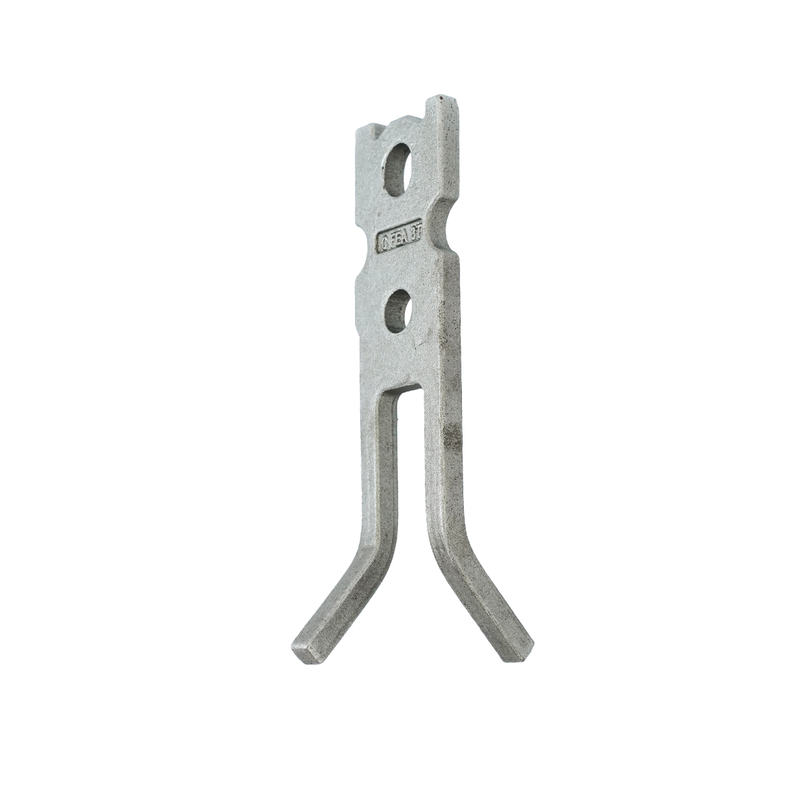

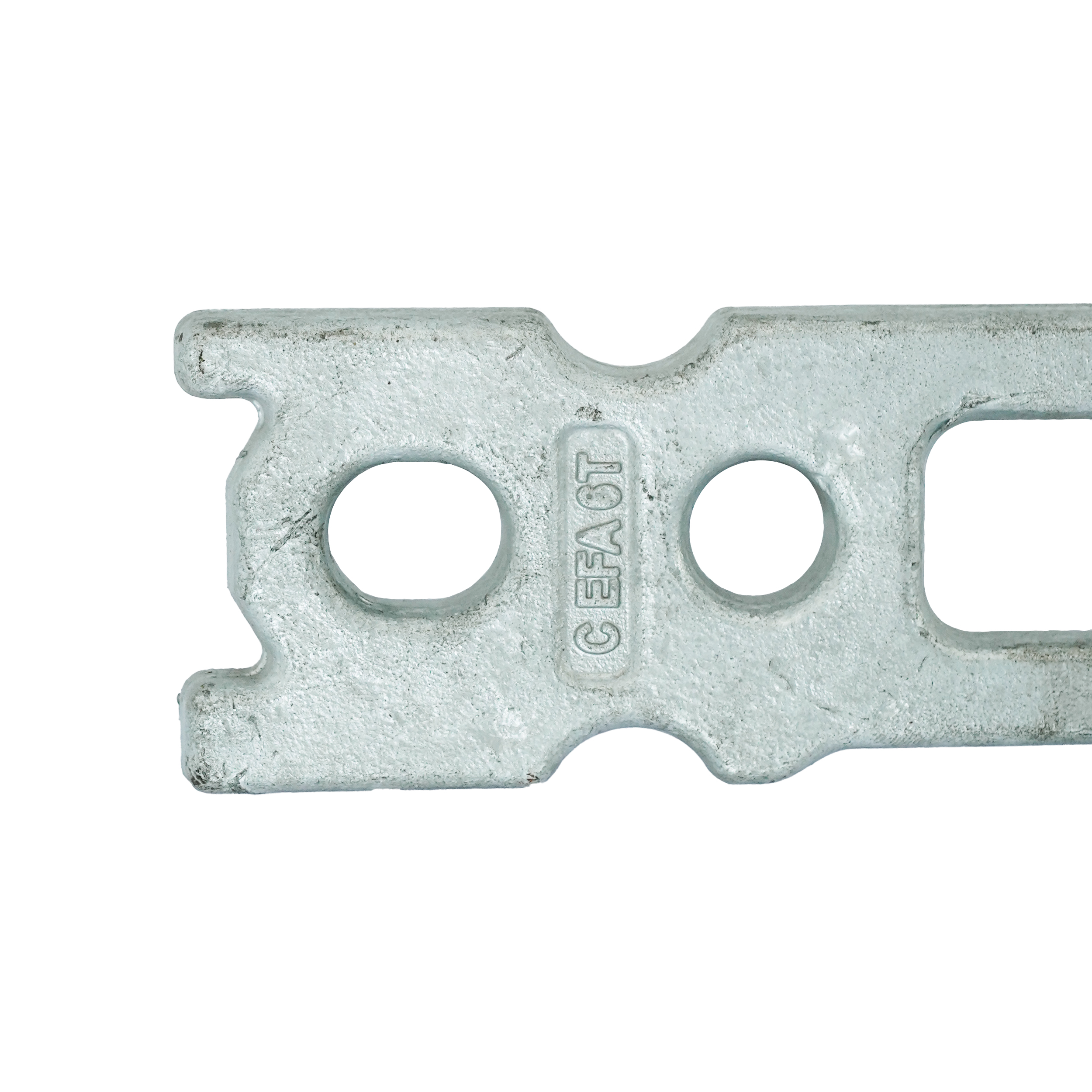

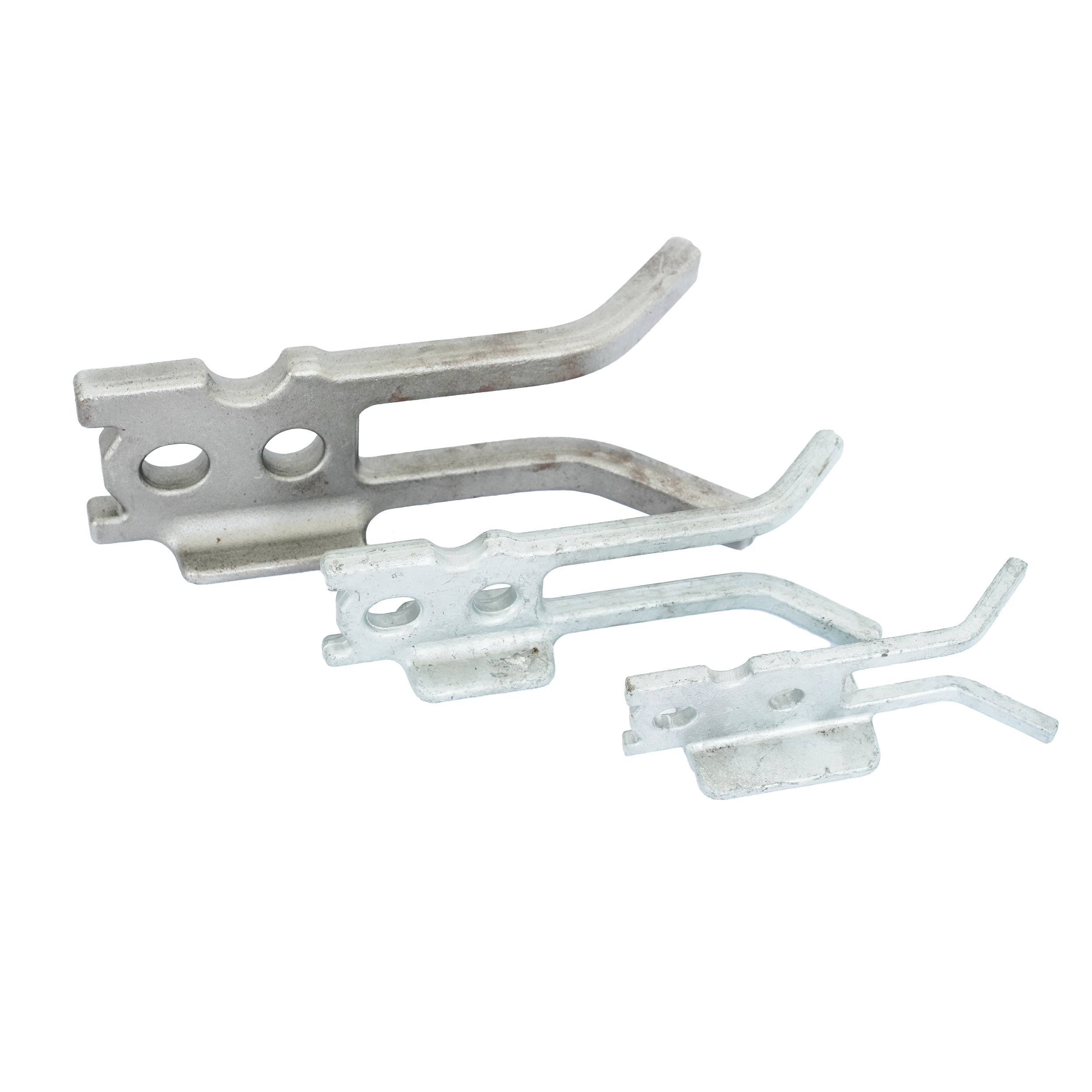

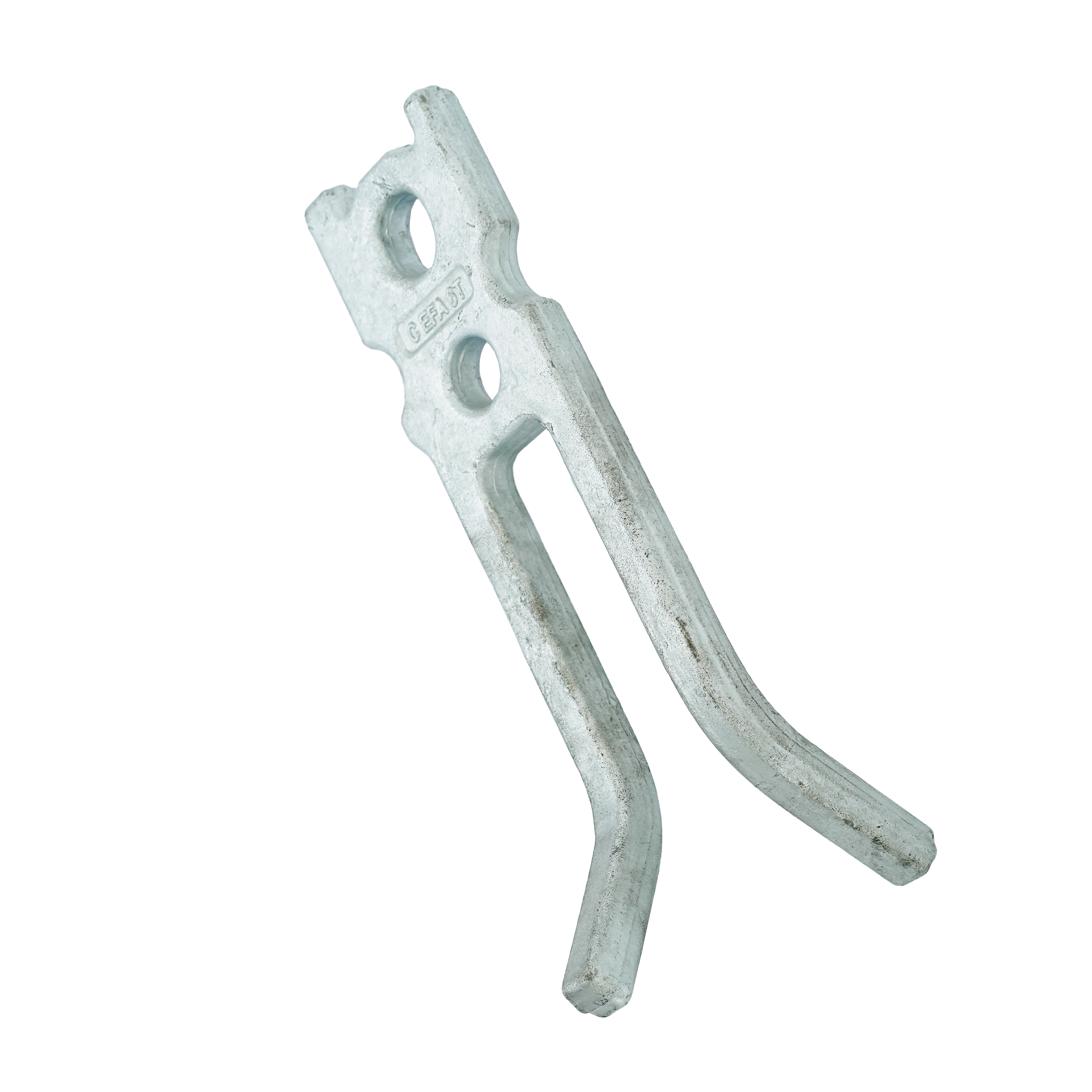

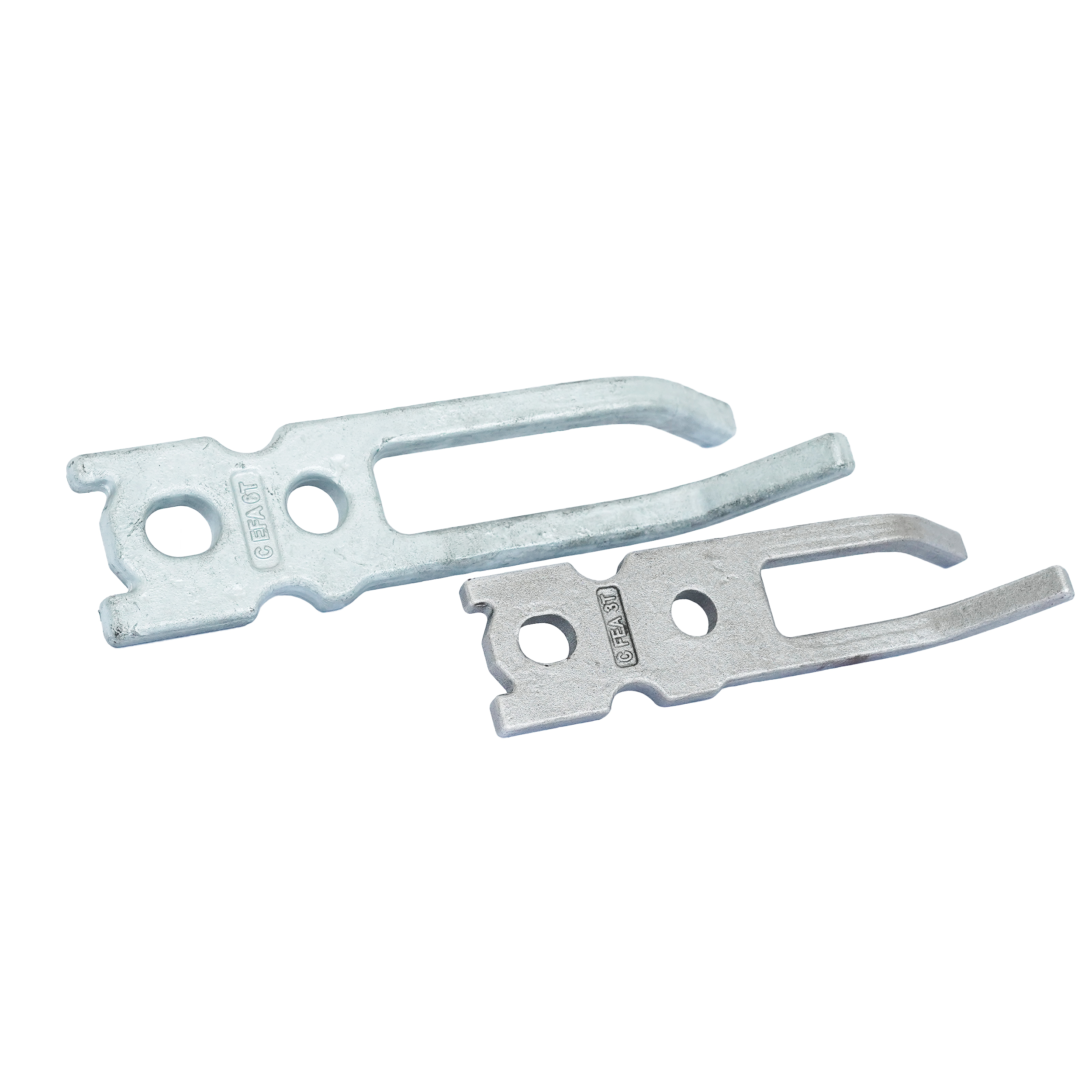

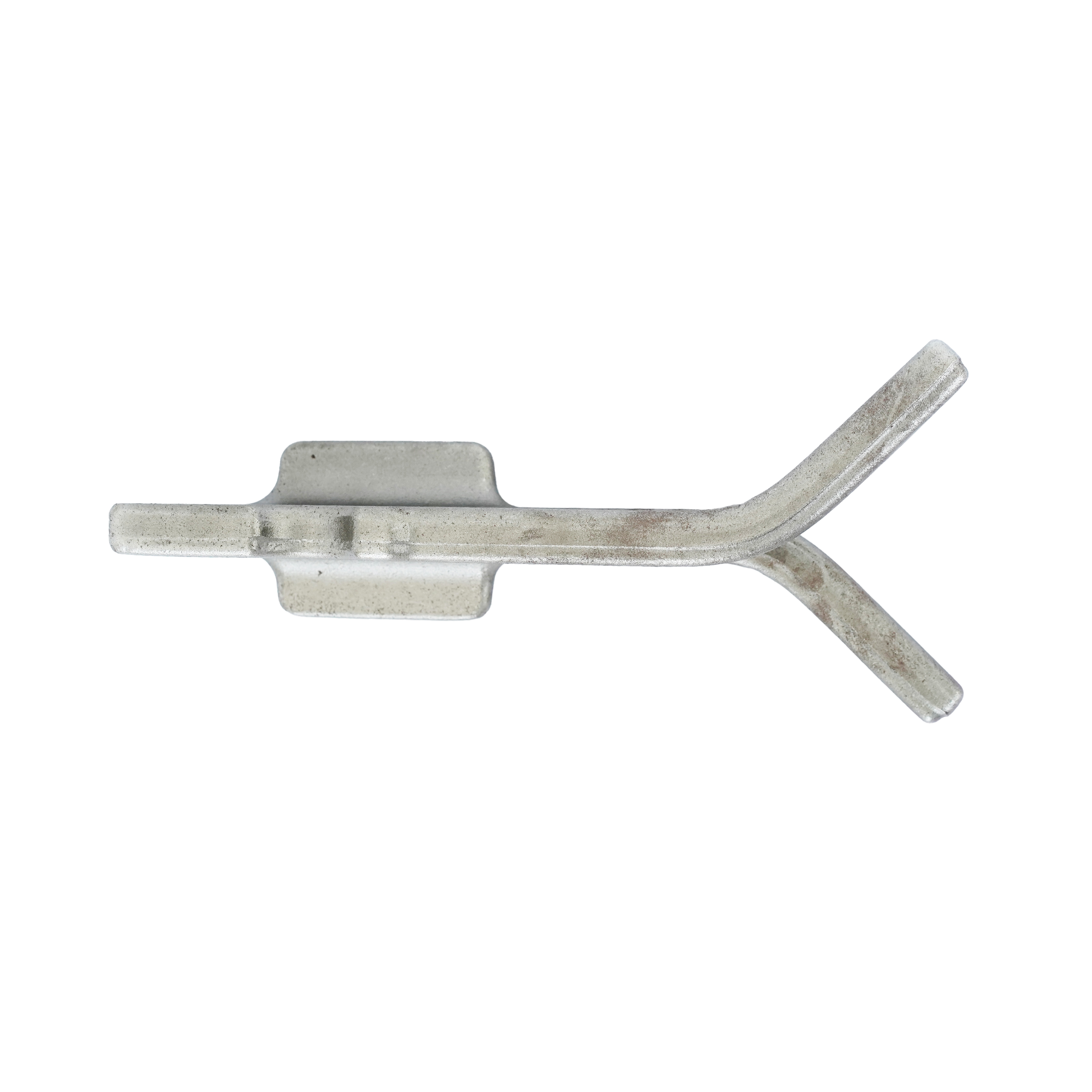

Y Erection Anchor

The Y Erection Anchor is a precision-engineered precast concrete lifting component, crafted from high-strength forged alloy steel with heat treatment for superior durability. Featuring a unique Y-shaped integrated structure, it optimizes force distribution to disperse tension and shear stress efficiently, avoiding concrete spalling and ensuring stable, tilt-free lifting. Designed for easy embedding in precast molds and quick sling connection, it complies with EN 13369 and ASTM standards, delivering reliable load-bearing performance for precast wall, beam, and slab hoisting, and infrastructure projects.

Quantity:
Availability:





Inquire Add to Basket

Product Description

▍Product Advantage

Unique Y-Shaped Force Optimization Design

The patented Y-type structure scientifically disperses vertical lifting tension and horizontal shear force, eliminating stress concentration on concrete. This design ensures balanced lifting posture, effectively preventing precast component cracking and tilting during hoisting.

High-Strength Forged Material with Stable Performance

Forged from premium alloy steel and quenched-tempered integrally, its tensile strength reaches 950MPa, with a strict 4:1 safety factor. Each product passes 100% pull-out testing, bearing heavy loads stably without deformation or fracture.

Easy Embedding & Quick Installation

The integrated base design enables accurate positioning in precast molds, with standardized embedded depth for tight concrete bonding. The ergonomic lifting lug supports fast sling connection, cutting on-site preparation time by 40%.

Excellent Anti-Corrosion & Long Service Life

Adopts hot-dip galvanizing or black oxide surface treatment, with coating thickness ≥80μm. It resists concrete alkali corrosion and outdoor harsh environments, maintaining stable performance for over 15 years.

International Standard Compliance & Wide Compatibility

Manufactured in accordance with EN 13369 and ASTM precast standards, suitable for various precast components. Compatible with standard lifting slings and shackles, meeting global construction safety and quality requirements.

▍Technical Parameters

Item	Specification Details	Remarks
Product Name	Y Erection Anchor	Precast Concrete Lifting Component
Structure Type	Y-Shaped Integrated Design	Optimized Force Distribution
Material	High-Strength Forged Alloy Steel	Integral Quenching & Tempering
Tensile Strength	≥950MPa	Anti-Fracture & Anti-Deformation
Safety Factor	4:1 Standard	Meets Global Safety Norms
Rated Load Range	2T-12T Customizable	100% Pull-Out Tested
Surface Treatment	Hot-Dip Galvanized / Black Oxide	Coating Thickness >80um
Embedded Depth	80-150mm Standard	Tight Concrete Bonding
Executive Standard	EN 13369, ASTM	Precast Industry Compliance
Application Environment	Outdoor Construction Sites	Alkali & Weather Resistance

▍Product Uses

Precast Wall Panel Lifting:

Widely used for hoisting precast concrete wall panels in residential and commercial buildings. The Y-shaped structure disperses stress evenly, avoiding concrete cracks and ensuring stable, precise vertical installation.

Precast Beam & Slab Handling:

Ideal for lifting heavy precast beams, hollow slabs and floor components. It bears rated loads stably, supporting safe transfer between precast factories and construction sites efficiently.

Retaining Wall & Infrastructure:

Applied to precast retaining walls, culverts and drainage parts in infrastructure projects. Its anti-corrosion finish adapts to outdoor harsh environments for durable lifting.

Bridge Prefabricated Parts Hoisting:

Suitable for small-to-medium bridge deck panels and precast bridge components, complying with engineering safety standards to guarantee stable construction lifting.

▍Product Operate Guide

Position the Y Erection Anchor firmly in precast molds before concrete pouring, ensuring full embedding. After concrete curing, connect slings to the anchor lug, keep the load centered, and strictly prohibit overloading or oblique lifting. Inspect the anchor for damage before each use to ensure safe operation.
