U-Clevis

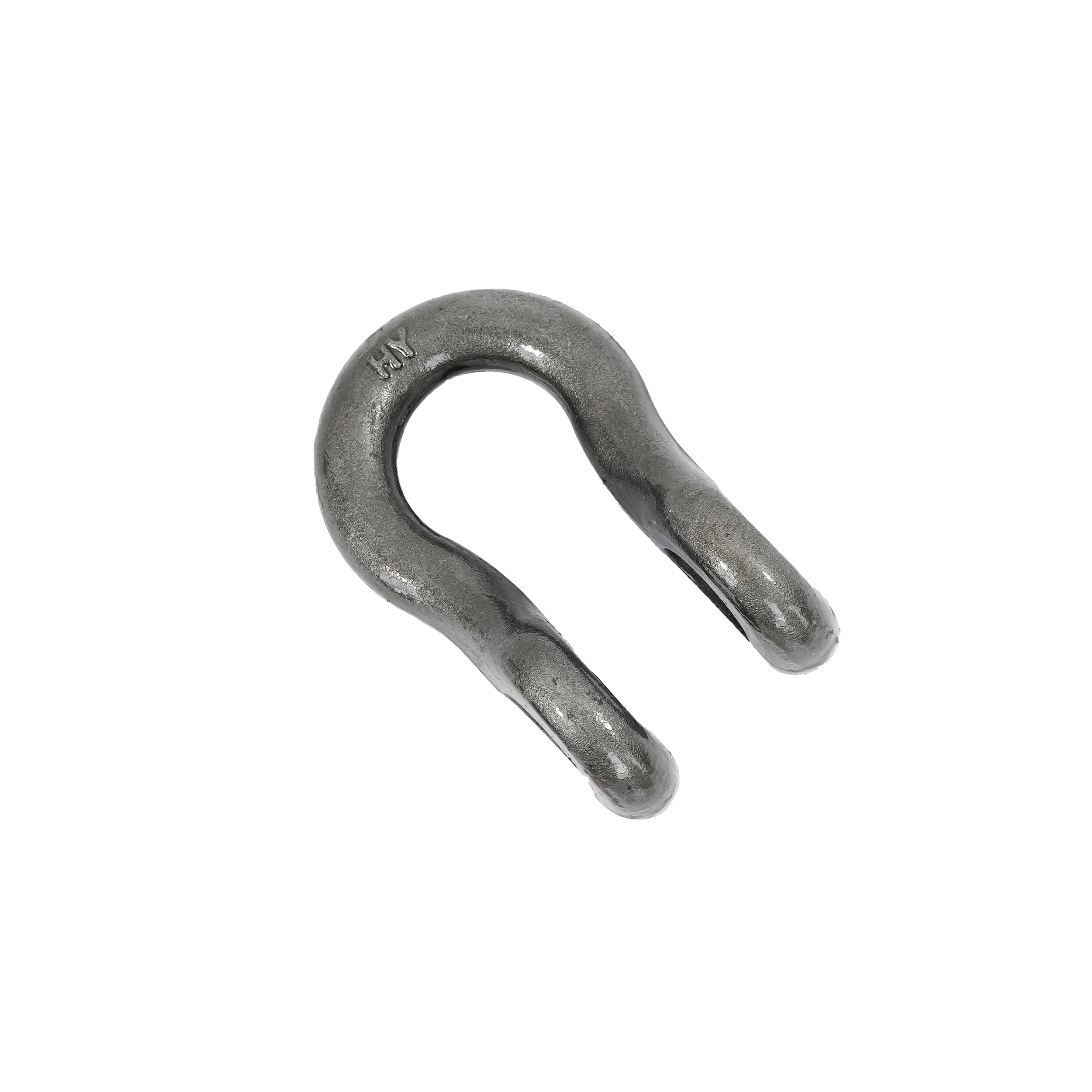

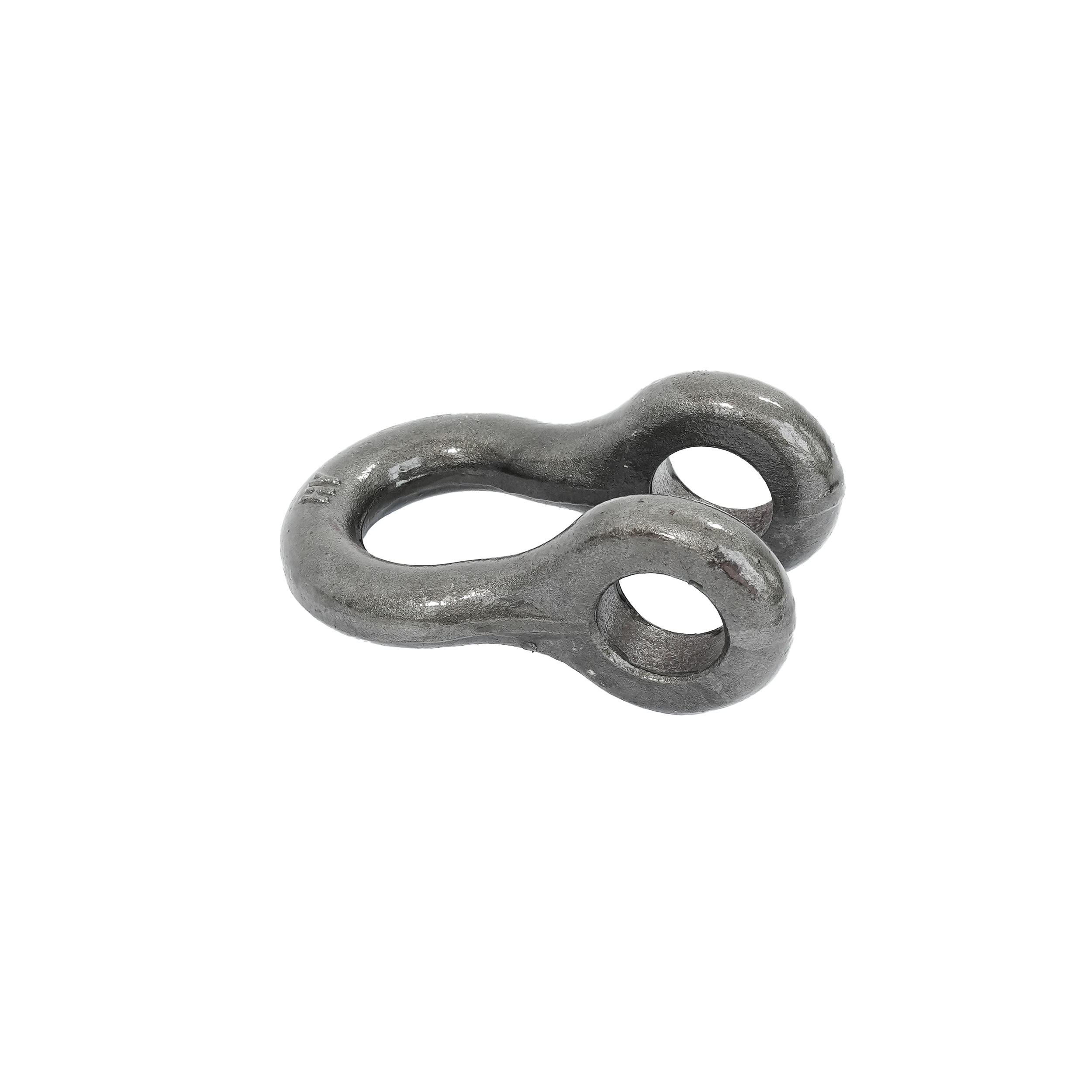

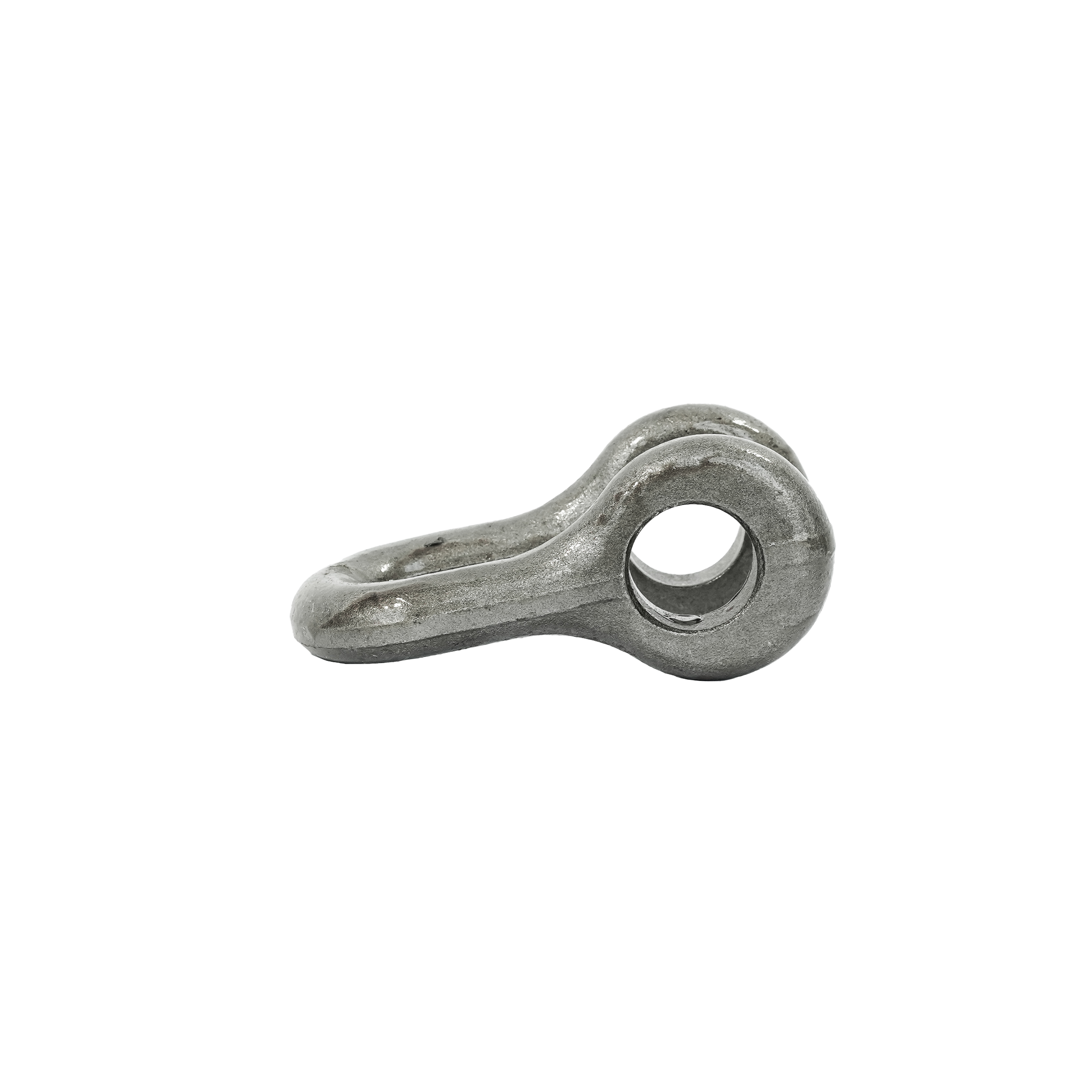

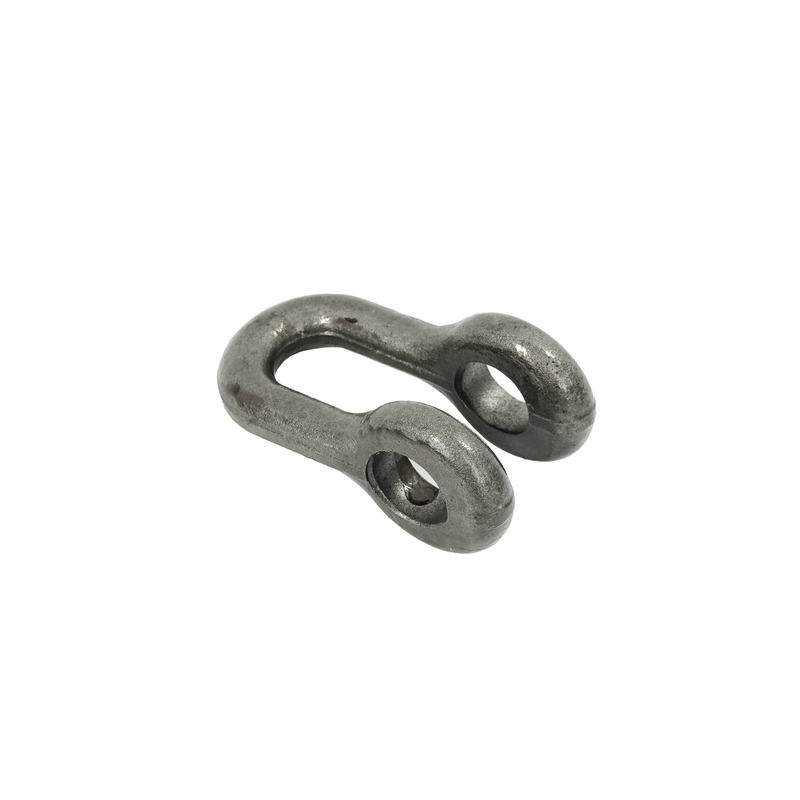

U-Clevis is a forged high-strength connecting component widely used in railway, power and heavy machinery industries. Made from carbon steel or alloy steel with hot-dip galvanized finish, it features a U-shaped double-hole structure for reliable chain or rod connection.
Designed to transmit tension and allow limited articulation, it ensures stable performance under heavy loads and harsh environments. With excellent wear resistance and anti-fatigue properties, it serves as a critical fastener for braking systems, power transmission lines and lifting equipment, meeting international industrial safety standards.

Quantity:
Availability:





Inquire Add to Basket

Product Description

▍Product Advantage

Forged Integrated Structure & Ultra-High Strength

Adopts precision hot forging process with one-piece molding, no welding cracks or deformation risks. This heavy duty U-Clevis has a breaking load up to 5-20T (customizable), featuring high tensile strength and excellent anti-fracture performance for heavy-load working conditions.

Premium Hot-Dip Galvanized Anti-Corrosion

Equipped with thick hot-dip galvanized coating (thickness ≥85μm), it delivers outstanding rust and corrosion resistance. Even in humid, outdoor or coastal harsh environments, its service life reaches 8-12 years, far longer than ordinary painted connectors.

Standardized Dimension & Easy Installation

Strictly manufactured per international sizing standards, with smooth hole positions and accurate spacing. It matches standard pins/shackles perfectly, realizing quick assembly and disassembly, saving 30% construction time and reducing labor costs.

Excellent Anti-Fatigue & Wear Resistance

After high-temperature quenching and tempering treatment, the hardness reaches HRC 25-32. It withstands long-term vibration and repeated pulling, avoiding fatigue damage and ensuring stable long-term operation.

Wide Compatibility & Strong Versatility

Suitable for various connection scenarios such as railway braking systems, power line fittings and lifting equipment. This forged U-Clevis supports custom sizes and load capacities to meet diverse industrial application demands.

▍Technical Parameters

Item	Specification Details	Remarks
Product Name	U-Clevis	Also called U-Shackle,Forged Clevis
Material	High-Strength CarbonSteel Q235/45#	Alloy Steel Customizable
Surface Treatment	Hot-Dip Galvanized	Coating Thickness >85um
Process Technology	Integral Hot Forging +Quenching & Tempering	One-Piece Molding, NoWelding
Breaking Load	5T-20T	Custom Load CapacitySupported
Hardness Grade	HRC 25-32	Anti-Fatigue & Anti-Deformation
Pin Hole Diameter	10mm-30mm	Match Standard ClevisPins
Overall Dimension	Customized as PerDrawings	Standard Sizes in Stock
Executive Standard	ISO 9001, IndustrialFastener Norms	Compliant with Railway / Power Standards
Service Life	8-12 Years	Outdoor HarshEnvironment Adapted

▍Product Uses

Power Transmission Line Fittings:

Used for connecting insulators, wires and tower hardware in power grids. The heavy duty U-Clevis withstands outdoor wind and ice loads, providing reliable suspension and connection for power facilities.

Heavy Machinery & Engineering Equipment:

Applied to excavators, cranes and construction machinery for connecting hydraulic rods and moving parts. It adapts to frequent mechanical vibration and heavy-load working conditions stably.

Steel Structure & Marine Engineering:

Used for steel beam connection and marine deck fixing, with hot-dip galvanized coating resisting seawater corrosion, suitable for harsh coastal and offshore engineering environments.

▍Product Operate Guide

Align the U-Clevis fork with the connecting rod/chain, insert a standard matching pin and secure with a cotter pin to avoid slipping. Do not overload or use damaged parts; inspect fastening status regularly. Download PDF Manual for detailed installation steps and safety norms.
